Reckhorn

ISO-20 for sound and temperature insulation in caravans and motorhomes

ISO-20 for sound and temperature insulation in caravans and motorhomes

€46,95 EUR
€46,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

New: Sound and heat insulation in one product
The second step involving rubber foam is eliminated, as are the problems of long-term adhesion of the rubber foam panels. The noise insulation is equivalent to our ABX 2mm; because the firmly bonded rubber foam provides not only thermal insulation but also sound insulation.
Both layers are inextricably bonded and the high adhesive strength is identical to ours. ABX and ABX-tra . After butt-joint bonding, we recommend our rubber foam tape for the seam. FLEX-3 . Our video shows the processing instructions.
For optimal adhesion, we recommend preparing the surface to be bonded:
1. Dust, oil and grease free.
2. Lightly sand water-repellent surfaces (lotus effect).
3. Improve initial adhesion by warming to 20-40°C. Alubutyl and ISO composite mats should be stored for 1 day at 15-30°C.
4. Press down the aluminum butyl with a wallpaper roller. Press down the insulating mats firmly by hand.

Technical data:
6 pieces 1m x 0.5m = 3m²

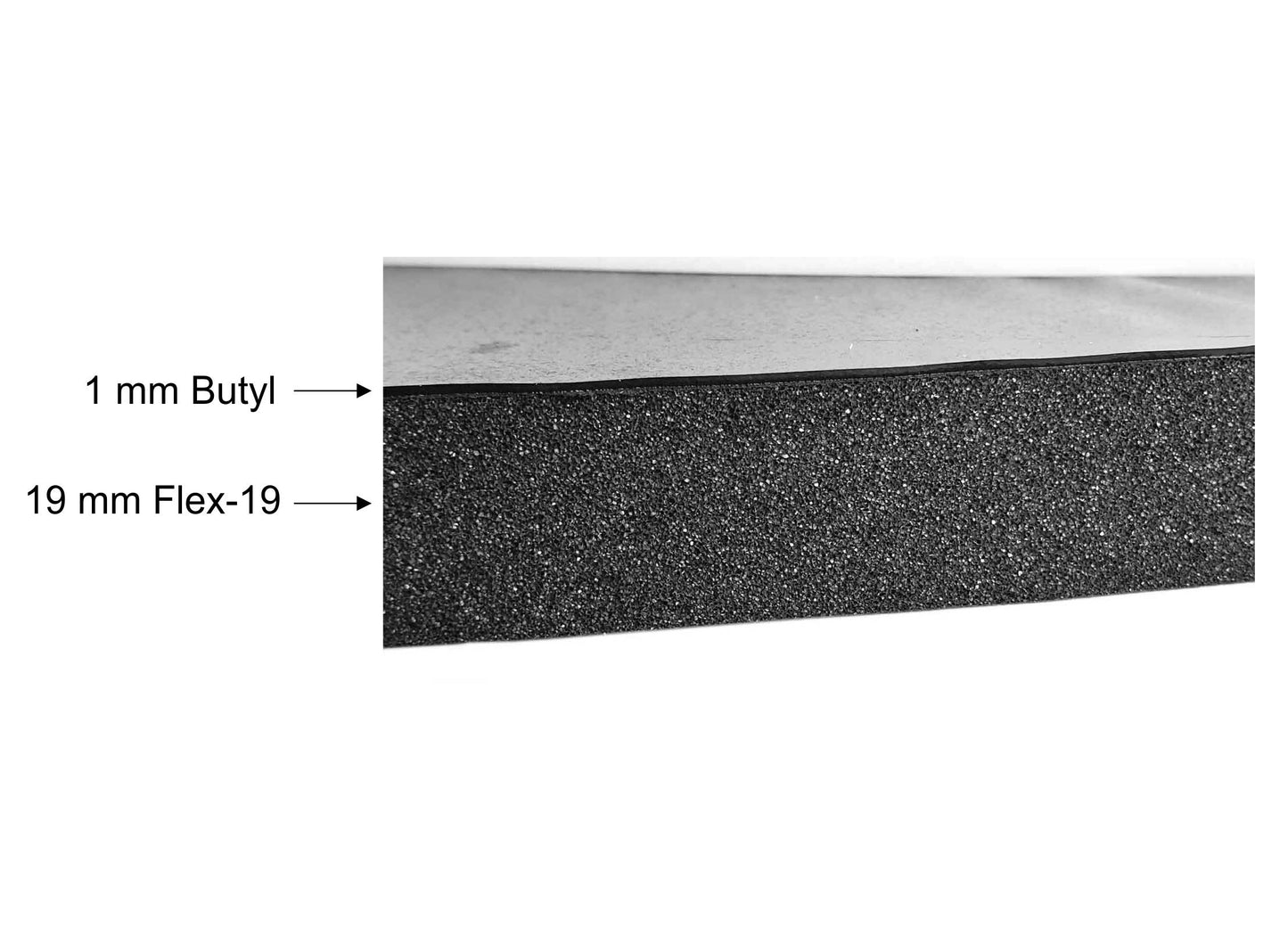

Composite panel 1m x 0.5m x 19mm rubber foam + 1mm butyl = 20mm thickness
Thermal conductivity 0.032 W/(m*K)
Weight per m² = 3.3 kg
All components comply with our ABX butyl layer + FLEX-19
Suitable for damp rooms and temperature range -20 to +80°C.

Waterproof, diffusion resistance factor µ > 10000
