Reckhorn

F-6.5 bass midrange driver

F-6.5 bass midrange driver

€24,99 EUR
€24,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

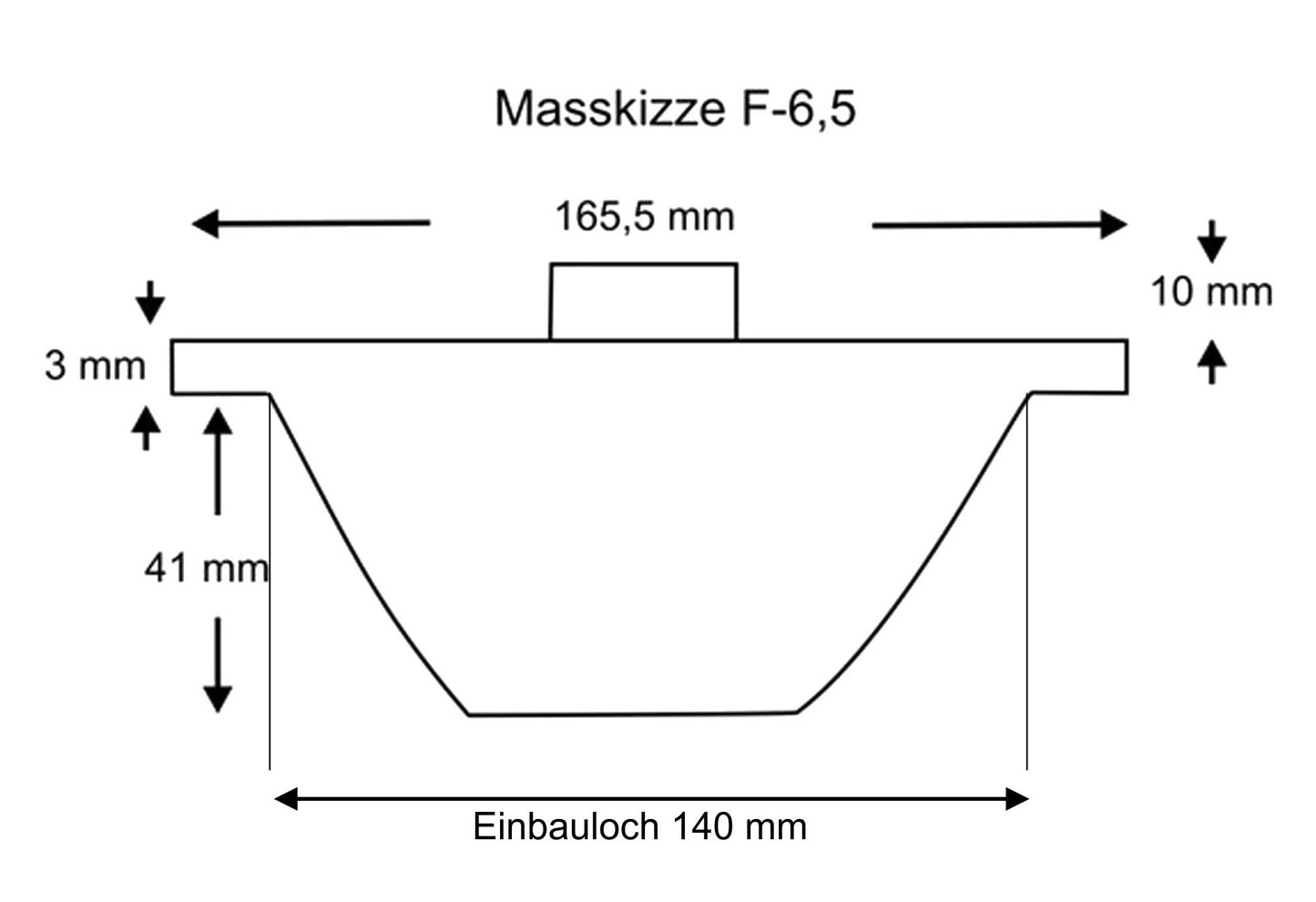

This 165 mm Euronorm chassis is produced with cosmetic variations for high-end manufacturers and sold at a significantly higher price. We have a stock of identical technical quality in industrial packaging (plastic bag + cardboard sleeve) which we can offer at a very low price.
The outstanding features are:

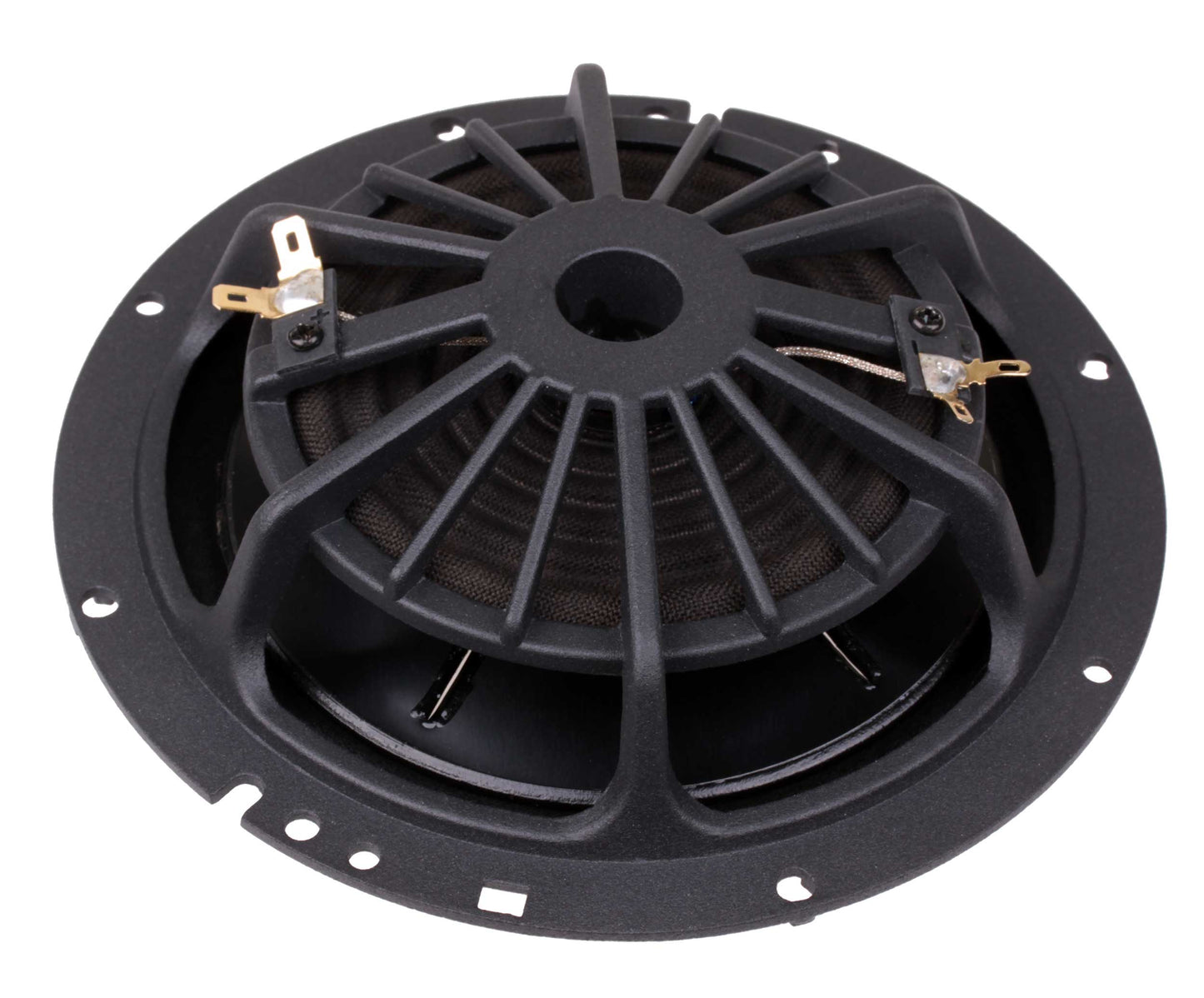

- Flat cast aluminum basket with internal, very strong neodymium magnet

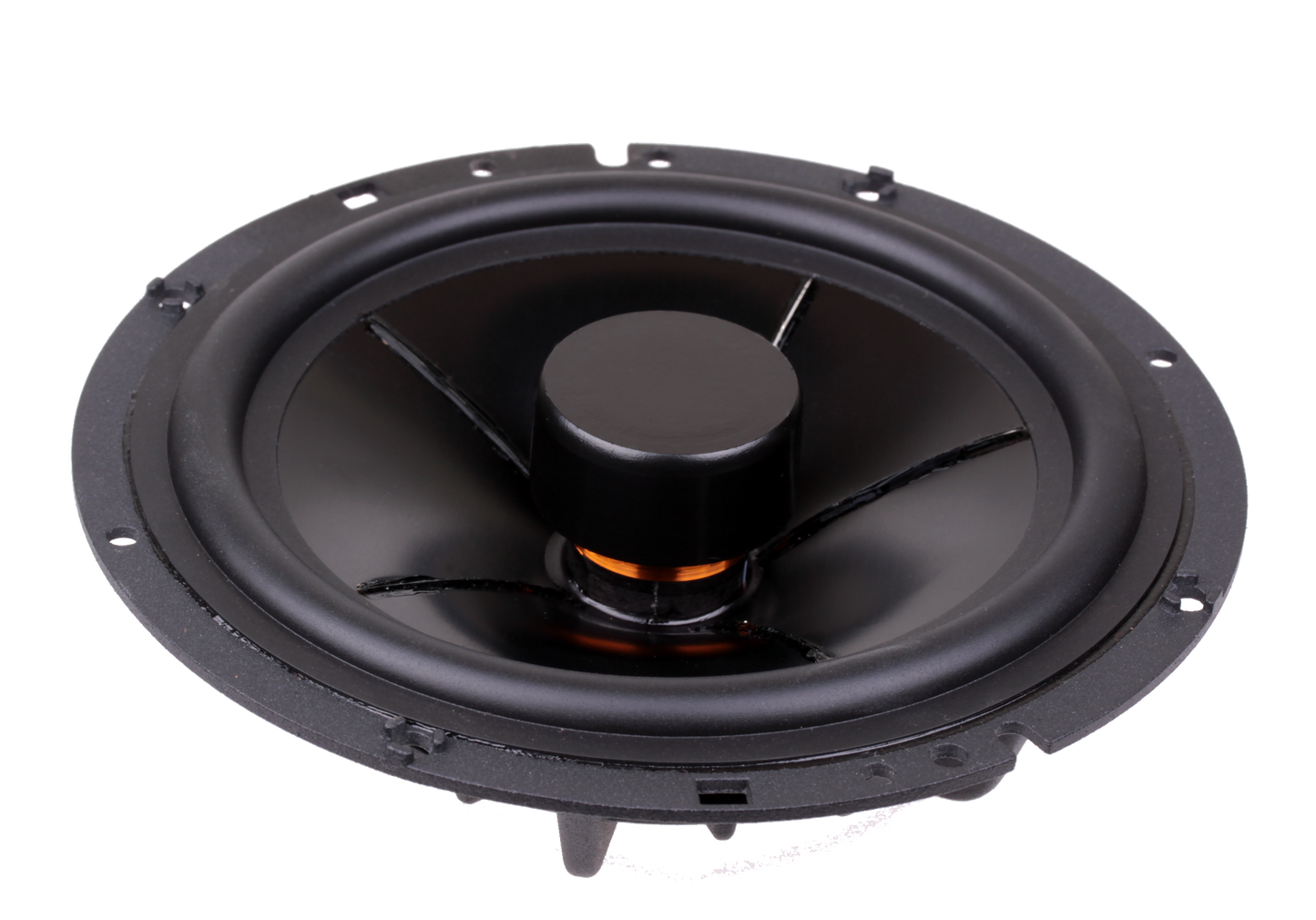

- Aluminum membrane, deeply anodized on both sides, with highly damping rubber surround
- Additional membrane damping through 5 asymmetrical incisions with resonance-free coating
- 250° Celsius heat-resistant fiberglass voice coil for high reserves in mid-high frequency operation at high levels
- Broadband characteristics with clear midrange reproduction that rolls off as planned above 3 kHz / 45° - Operation without passive crossover.
Thiele-Small Parameter:
Revc = 3.20 Ohm, Levc = 163 µH, Fo = 60 Hz, Sd = 12.272k, Md = 10 g, Bl = 2.41, Qms = 7.087, Qes = 2.545, Qts = 1.873, No = 0.12, SPL = 82 dB, Vas = 11.244 liters, Cms = 525.795 M/N, Mms = 11.232 g, Mmd = 10.451 g
You will find further important information in the taskbar below the product images.
View full details
