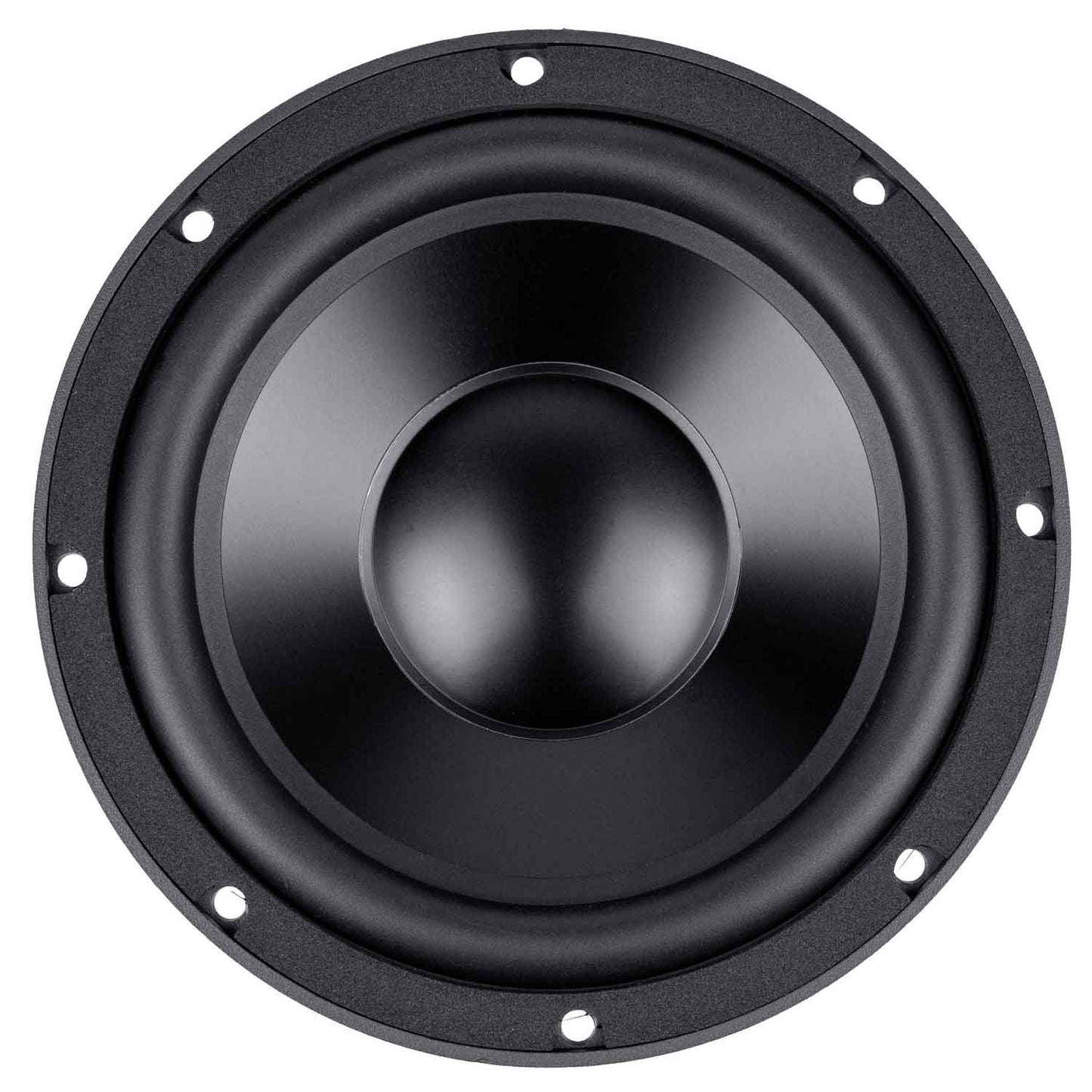

D-200 subwoofer bass chassis 20cm

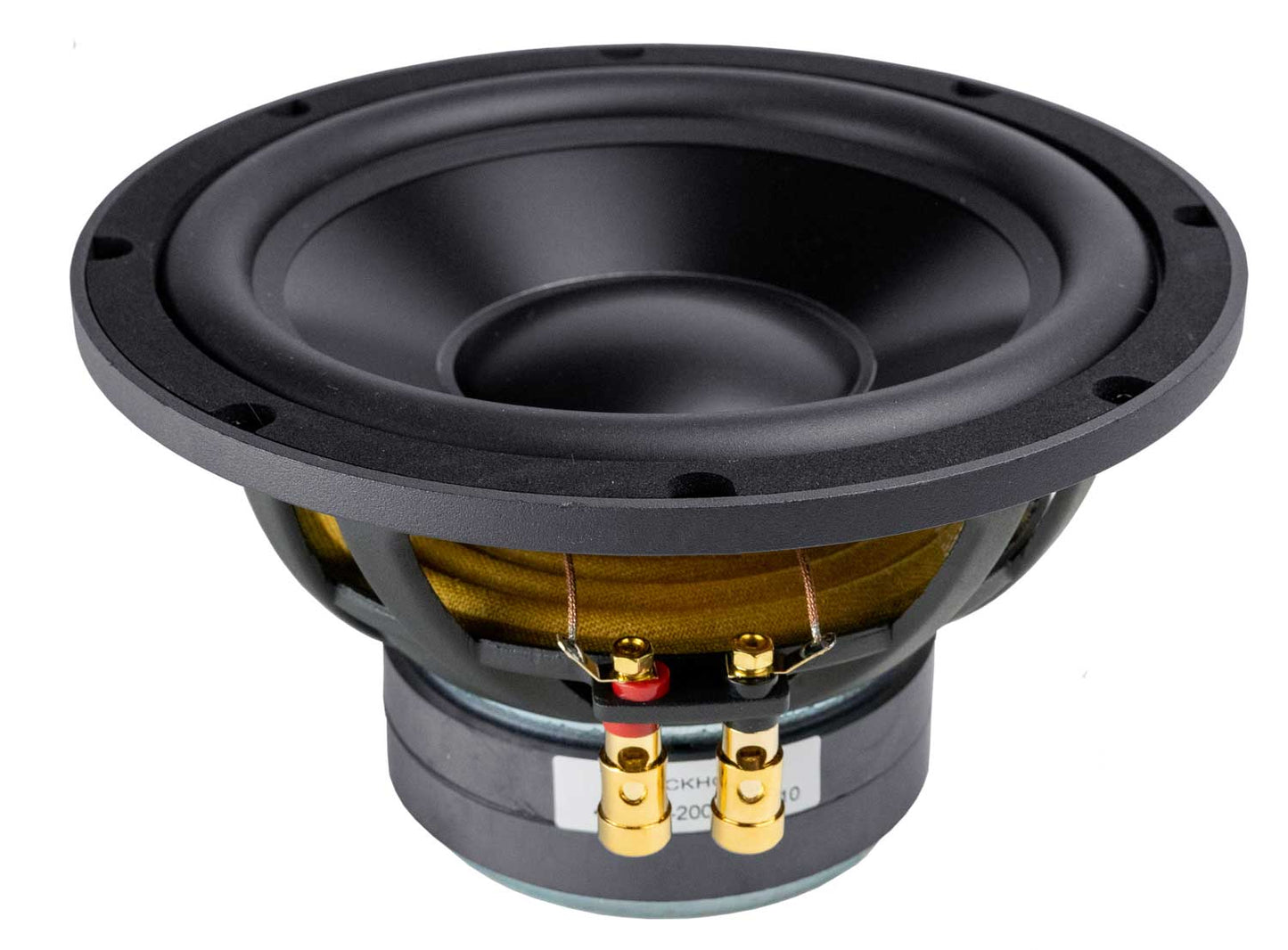

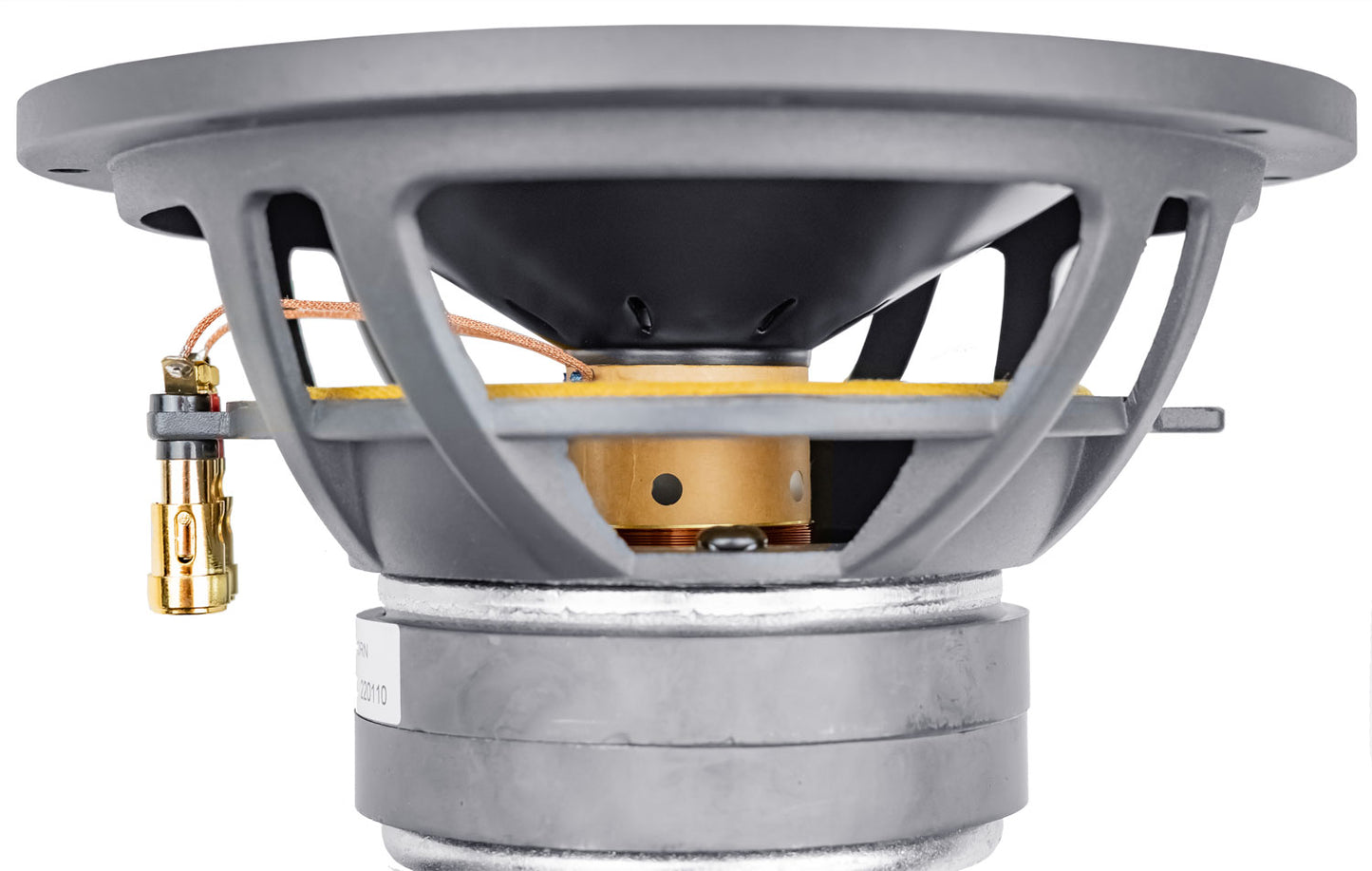

The D-200 / 20cm benefits from the D-165i / 16cm, which has been reliably and powerfully operating in thousands of home and car speaker systems for many years. We have adopted the high-quality components and assembly quality from the D-165: - Aluminum die-cast basket with ventilation of the aluminum voice coil with polyimide wire and adhesive for heat resistance up to 250° Celsius. - Membrane and dust cap made of anodized aluminum for lossless deep bass pressure. The slots under the dust cap ventilate the voice coil and reduce mechanical loss. - Double magnet for long diaphragm stroke without bottoming out.
Suitable applications for building your own loudspeaker include: - Compact subwoofer enclosures - 3-way system in combination - Subwoofer enclosures with 2 or more units for fast and deep bass reproduction with high sound pressure.
A test of our Reckhorn D-200 loudspeaker driver is available on www.hifitest.de now online.
Recommended net volume for a closed enclosure, heavily insulated in the middle.
D-200 Number	for good deep bass	for optimal deep bass
1	15-20 liters	30-35 liters
2	25-30 liters	50-60 liters
4	45-60 liters	80-100 liters
Thiele-Small Parameter: Re = 3.6 Ohm, Le = 1.047 mH, FS = 28 Hz, Qms = 5.066, Qes = 0.334, Qts = 0.322, Sd = 21.38 cm², Vas = 33 l, Mms = 56 g, Efficiency: 86 dB 1 W / 1 m
You will find further important information in the taskbar below the product images.
The technical data, installation dimensions and the hole pattern diagram can be found in the Help section as a download.

Conclusion of Hobby HiFi issue 2-3/2023:

"Reckhorn has managed the feat of creating a robust and deep-bass-capable subwoofer driver at a highly affordable price. This enables the construction of bass modules with confident deep bass reproduction in a not overly large enclosure."
